Reverse Light Wiring Kit (w/ running light
This wiring harness allows you to connect your Diode Dynamics lights with backlight functionality to your vehicle's wiring for simple, everyday operation.
Price:
NZ$ 113.62 including GST

NZ$ 98.80 excluding GST
UOM:
1
Diode4102
Delivery approx 21 days.
Purchase Qty:


Overview

Easy Operation. This wiring harness allows you to connect your Diode Dynamics lights with backlight functionality to your vehicle's wiring for simple, everyday operation. When paired with our LED pods with a white main beam and red backlight, this harness allows your lights to operate as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

Features

  • Powers Diode Dynamics lights with backlight functionality.
  • Connects to vehicle wiring for simple, everyday operation of lights.
  • High capacity 14AWG & 18AWG wiring.
  • Dual Deutsch DT output connectors.
  • 10A waterproof fuse to safeguard the electrical systems in your lights.

What's Included

In the Box:

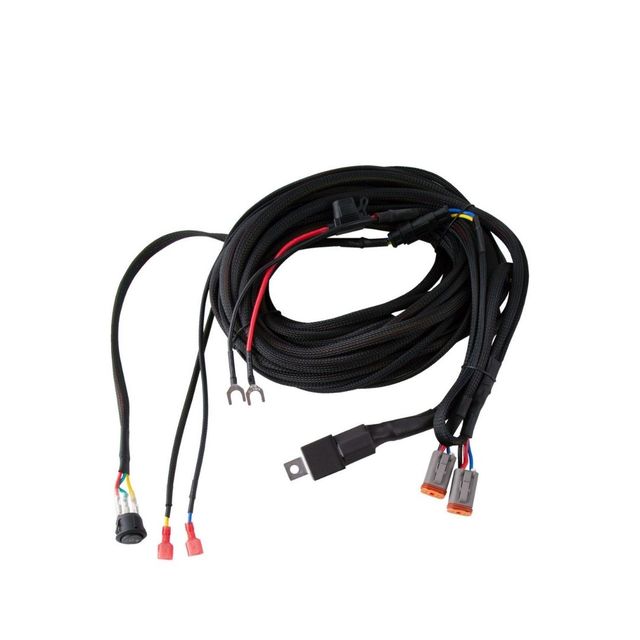

  • One (1) Universal Wiring Harness
  • Ten (10) Zip Ties
  • Two (2) T-Taps

Specifications

Operating Voltage: 9-16V
Wire Size: 14AWG & 18AWG
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): Deutsch DT Input
Unit Weight (lb): 2.5
Product Weight (lb): 2.5
Shipped Weight (lb): 3
