Toyota Hilux ARMAX Snorkel System
The SS122HP Safari Snorkel suitable for Toyota 25 Series Hilux 4x4 is designed to deliver up to 50% more air than the OE air intake for Toyota Hilux engines.
Price:
NZ$ 713.00 including GST

NZ$ 620.00 excluding GST


or four interest-free payments of $178.25 with
Learn More


Or 4x interest free payments of $178.25 with
Learn More
SS122HP
Delivery approx 21 days.
Purchase Qty:


The SS122HP Safari Snorkel suitable for Toyota 25 Series Hilux 4x4 is designed to deliver up to 50% more air than the OE air intake for Toyota Hilux engines.

With the popularity of performance upgrades using engine management and larger exhausts, Safari 4x4 Engineering took the decision to design a snorkel system that not only raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner, but also would be able to deliver the necessary volume of air into the engine, therefore maximizing the performance enhancements potential.

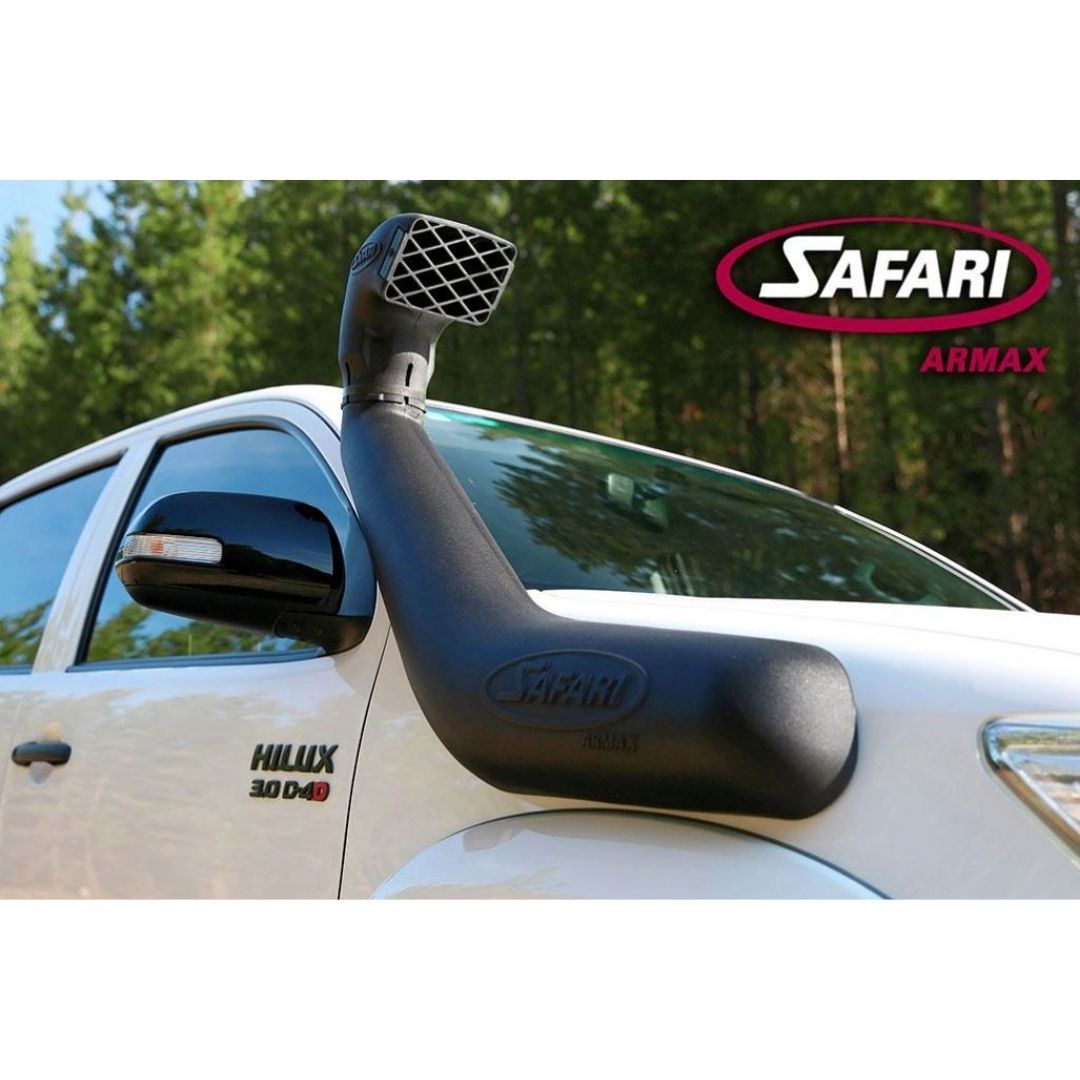

Huge air flow is but one aspect of the ultimate in snorkel design suitable for Toyota Hilux. The Safari ARMAX snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari ARMAX air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

03/2005 - 07/2011 3.0L Diesel 1KD-FTV

·       Up to 50% increased airflow for your 25 Series Hilux engine
·       Safari’s rounded style Air Ram; however with minimum 4” neck and an optimised air flow, low restriction grill
·       Australian designed, moulded and manufactured
·       Design and flow tested by our in house engineers for maximum performance
·       Development in conjunction with other soon to be released ARMAX™ performance enhancement products.
·       Raised air intake to prevent your engine from ingesting harmful elements
·       Water separating air ram design to remove water from the air stream
·       Durable and UV stable snorkel and air ram for added strength
·       Comprehensive Snorkel fitting guide suitable for Toyota Land Cruiser 4WD with an accurate template for installation.
·       Lifetime warranty

Specifications

  • Fits vehicle year to: 2015
  • Fits vehicle year to month: 10
  • Fits vehicle year from: 2005
  • Fits vehicle year from month: 01
  • Style: ARMAX
  • Fitment side: Drivers Side
  • Fitting time approx: 3.5 Hr
  • Material type: UV Stabilised Polyethylene

VEHICLES

MakeModelSeriesYear FromYear ToBodyEngineEngine CapacityVariantDrivetrainCylinders
TOYOTA HILUX KUN16R 2005 2015 Ute 1KD-FTV 3.0L D 4
TOYOTA HILUX KUN16R 2005 2015 Cab Chassis 1KD-FTV 3.0L D 4
TOYOTA HILUX KUN16R 2005 2015 Ute 1KD-FTV 3.0L SR Manual 4
TOYOTA HILUX KUN16R 2005 2015 Cab Chassis 1KD-FTV 3.0L SR, WORKMATE Manual 4
TOYOTA HILUX KUN26R 2005 2015 Ute 1KD-FTV 3.0L D 4
TOYOTA HILUX KUN26R 2005 2015 Ute 1KD-FTV 3.0L SR5 X-CAB Manual 4
TOYOTA HILUX KUN26R 2005 2015 Ute 1KD-FTV 3.0L SR5 Auto/Manual 4
TOYOTA HILUX KUN26R 2005 2015 Ute 1KD-FTV 3.0L SR, WORKMATE Auto/Manual 4
TOYOTA HILUX KUN26R 2005 2015 Ute 1KD-FTV 3.0L SR X-CAB Manual 4
TOYOTA HILUX KUN26R 2005 2015 Cab Chassis 1KD-FTV 3.0L SR, WORKMATE Auto/Manual 4
TOYOTA HILUX KUN26R 2005 2015 Cab Chassis 1KD-FTV 3.0L SR Auto/Manual 4
TOYOTA HILUX KUN26R 2005 2015 Ute 1KD-FTV 3.0L SR5 4
TOYOTA HILUX KUN16R 2005 2015 Ute 1KD-FTV 3.0L D 4
TOYOTA HILUX KUN26R 2005 2015 Ute 1KD-FTV 3.0L D-4D 4
TOYOTA HILUX KUN16R 2005 2015 Ute 1KD-FTV 3.0L SR X-CAB Manual 4

To suit models - Toyota Hilux 125 Series Facelift Model (08/11-06/15), PRE-facelift (03/05-07/11)

To suit engines - 1KD-FTV 3.0L l5
