- Australian Made
- Mandrel Bent Tubing, allowing no restrictions throughout the length of the system.
- 409 Stainless Steel tubing for long lasting performance.
- Heat Proof enamel painted over whole exhaust, not just welds as some of our competitors do.
- Quality flange plates and brackets
- Improved Note : Get a better note out of your vehicle.
- Bolt on system that fits directly to the original vehicle mounting points for ease of fitment - Does not require a hoist.
- Sound options : Straight Pipe or Small Muffler
This is a 3" DPF Back system - the DPF muffles the note considerably. It is a legal requirement to keep the DPF in the system. To get a note from this system choose Straight Pipe Only - if you want it quiet then choose Small Muffler. To get the best note from your Ranger consider our 3.5" DPF Back system OE6604-35-S.
Sound options : Straight Pipe or Small Muffler
Style or side exit options: Factory Style Tail Pipe or Side Exit Tail Pipe
Fitting time 1.5hrs at a total cost of $1151.89 (straight pipe only)
Fitting time 3hrs at a cost total of $1778.74 (Straight pipe & muffler)
Send enquiry for fitting.
Our Options program allows you to customise some features of an Outback 4x4 Exhausts system.
The options we offer include :
* CHOICE OF MATERIAL
409 Stainless Steel is a titanium stabilised ferritic material which basically means it is a steel alloy containing chromium. It contains less nickel and more carbon than 304 stainless steel. Ferritics are best suited for high temperature applications that require corrosion resistance and high strength. 409 is the most common material used for modern automotive exhaust systems and catalytic converter shells. It is more workable, more stable & is more tolerate to heat cycling ( "hot one minute, cool the next" heat cycle ) than 304. 409 resists both atmospheric and exhausts gas corrosion. It is magnetic due to its higher carbon content. 409 is easier to repair than 304 should you damage a part. All our 409 systems carry a 5 year warranty.Through chemical reaction 409 oxidizes to a slight brownish hue which aids in corrosion resistance - we always paint our Outback 4x4 systems with a heat resistant paint for added protection. Most manufacturers simply paint weld joins, flanges & brackets - WE PAINT THE WHOLE SYSTEM FOR ADDED PROTECTION.
ACMS - Aluminium Coated Mild Steel also know as Aluminised, is a steel that has been hot dip coated on both sides with aluminium silicon alloy. This process assures a tight metallurgical bond between the steel and the aluminium coating. As with 409 we always paint our Aluminised systems with a heat resistant paint. Our Aluminised systems carry a 3 year warranty.
* With High Flow Cat or Without Cat
We recommend selecting a system with a Catalytic Converter - we use 200 High Flow diesel specific converters for optimum flow. If you go for a "No cat" system you may make your vehicle non compliant with Australian emissions regulations, depending upon the age of the vehicle. This can lead to being defected & fined for your vehicle being non compliant.
* No Muffler , Resonator or Large Muffler
Selecting a sound option depends upon your preference & the vehicle you have. A No muffler system will in most cases be loud - the exception to this is DPF Back systems. A resonator usually offers a mid tone note & a Large Muffler a quiet note. Most of the mufflers we use are of a straight through design for optimum flow & heat dissipation. Exhaust note varies from one model to the next - what you may love can drive someone else mad ! If in doubt please call us so we can run through the options with you !
* Tail Pipes
Depending on the vehicle we may offer a variety of tail pipe options, side exit, twin exit, Cerachroming etc

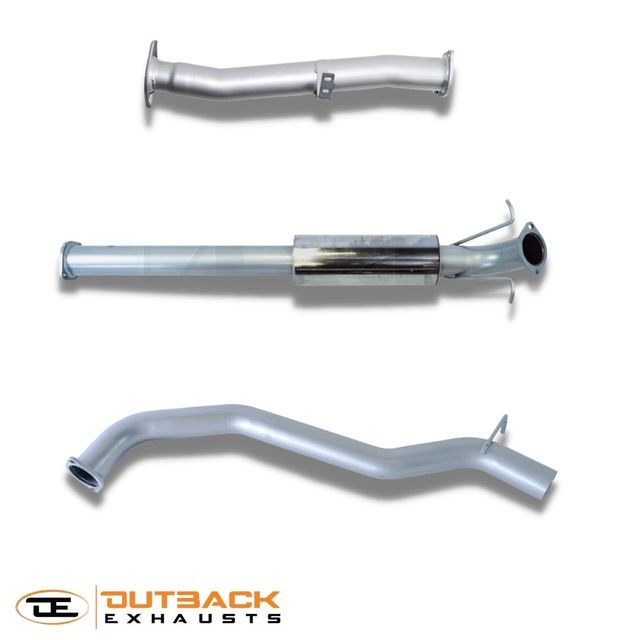

- Front Connecting Pipe
- Intermediate Connecting Pipe
- Tail Pipe assembly
- Gaskets, Nuts & Bolts
|TRANSMISSION||AUTO / MANUAL|
|PRIMARY BUILD MATERIAL||409 Grade STAINLESS STEEL|
|PAINT TYPE||HEAT RESISTANT ENAMEL
To suit - FORD RANGER PXII / III 3" DPF BACK - 409 STAINLESS ( 3.2L )
To suit - 10/2016 on
